An impressive range of products


Radiological Imaging Technology


Machine QA MLC QA Patient QA Imaging QA

Radia Therapy

Radia Therapy Software
RIT provides fast, robust, and accurate analysis of all imaging tests recommended in TG-142.  Easily automate your LINAC image QA and get quantitative, repeatable analysis for all tests. Full reports of all imaging tests are easily generated, and results can be automatically tracked with RITtrend™.



Cone Beam CT

Catphan®/OBI, kV/MV and Cone Beam CT

  • CATPHAN 528 Phantom ScanStandard Imaging ISOCube - kV/MV Matching
  • XVI LCV Module
  • XVI Resolution Module
  • Varian 504
  • Elekta 503
  • Siemens Image Quality
  • Catphan® 500/600



Entire scans are quickly analyzed with easy to interpret results. In addition, RIT includes specialized routines for Elekta XVI that match vendor specifications, including multiple collimator settings, frame averaging, and sagittal reconstruction.

Catphan® is a registered trademark of The Phantom Laboratory.

Electron Density

Electron Density & Tissue Characterization

  • Electron DensityCIRS 062, 062A, 062M (Cone Beam) Phantom
  • Gammex 467 Phantom
  • TomoTherapy® Cheese Phantom

EPID QC

EPID QC - Planar MV

EPID Phantom ScanRIT software is compatible with any EPID phantom, including the RIT EPID (EPID QA - manufactured and sold by Standard Imaging), Elekta iView™, Varian aS500, aS1000 and aS1200, and Siemens EPIDs. RIT software streamlines your planar MV imaging QA process by providing fast, accurate analysis of your EPID.

In addition to the phantoms being placed on an imager, RIT software can analyze the EPID QA phantom (RIT EPID), when placed directly on the couch. The phantom’s magnified dimensions are automatically calculated from the phantom size. Placing the phantom on the couch provides an analysis that is closer to realistic patient positioning. This provides physicists with more setup options when performing phantom analyses, including Varian Halcyon® users, whose imaging panels are inaccessible, and phantoms must be placed directly on the couch.

iView™ is a trademark of Elekta, AB.



DR/CR kV

DR/CR kV Imaging

  • DISC Phantom ScanIBA Primus L® (30 x 30 cm)
  • Leeds TOR-18FG
  • PTW NORMI® 4 FLU (20 x 20 cm and 30 x 30 cm)
  • Standard Imaging QCkV-1



Our DR/CR kV Module imaging tests are used to measure the full field performance of OBI systems on LINACs and CyberKnife®. Complete tests of Contrast, Uniformity, Noise, Modulation, kV, and Geometric Distortion are performed over large field areas (30 cm x 30 cm). These tests ensure compliance with the TG-142 Table 6 recommendations for Planar kV imaging. PTW NORMI® 4 and Primus L® can be placed directly on the couch.

CyberKnife® is a registered trademark of Accuray, Inc.
Primus L® is a registered trademark of IBA.
NORMI® is a registered trademark of PTW.



Radia Therapy Modules & Tests

Module & Test

Radia Outputs

Catphan®,
kV and Cone Beam Module

Varian 504 & 604 CATPHAN® Phantom

 Measures and plots material values, MTF, and CT number linearity. Measures slice width (both horizonal slices and both vertical slices), ramp alignment, rod distances, low contrast detectability, uniformity, integral non-uniformity, contrast-to-noise (CNR), and yaw and tilt. Plots integral non-uniformity profile. Scores low contrast objects.
Elekta 503 CATPHAN® Phantom
 Measures uniformity, absolute percent difference, resolution, contrast, low contrast visibility, scaling, and sagittal geometry.
CATPHAN® 500/600 Series Phantom


 Measures and plots material values, MTF, and CT number linearity. Measures slice width (both horizonal slices and both vertical slices), ramp alignment, rod distances, low contrast detectability, uniformity, integral non-uniformity, contrast-to-noise (CNR), and yaw and tilt. Plots integral non-uniformity profile. Scores low contrast objects.
Siemens Image Quality Phantom Geometrical measurements, central area mean and standard deviation, uniformity measurements, measures and plots MTF, low contrast target scoring.

Electron Density Module
Cheese Phantom Analyzes 20 density areas for mean material value. Computes standard deviation, noise, uniformity and contrast-to-noise ratio of each material. Performs a resolution test on the resolution plug(s).
All of these are to comply with TG-148 sections: VI.B.2.a, b, c, and d.
CIRS 062, 062A, 062M
(Cone Beam) Phantoms
 Measures and plots 17 density areas. Electron density analysis of the metal plugs. Easily modify the material values tolerances in the Tolerance Manager.
Gammex 467 Phantom
 Measures and plots 17 density areas. Geometric measurement in X and Y direction. Easily modify the material values tolerances in the Tolerance Manager.

EPID QC Module

RIT EPID Phantom
(EPID QA Phantom - manufactured and sold by Standard Imaging.)

 Measures all TG-142 recommended MV imaging tests: geometric accuracy, EPID signal isotropy, resolution, low contrast detectability, uniformity, and noise. Offers support for all EPID devices: Varian aS500 / aS1000, Elekta iView™ and Siemens. Couch placement analysis is supported.

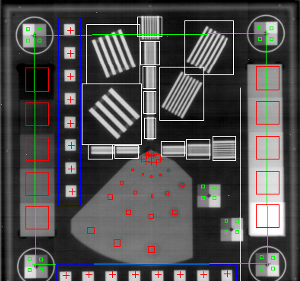

PTW EPID Phantom

 Measures all TG-142 recommended MV imaging tests: geometric accuracy, EPID signal isotropy, resolution, low contrast detectability, and noise. Offers support for all EPID devices: Varian aS500/aS1000, Elekta iView™ and Siemens. Couch placement analysis is supported.

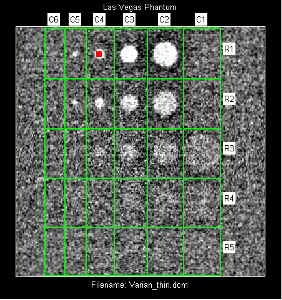

Las Vegas EPID Phantom

 Measures low contrast detectability, spatial resolution (limited), noise. Includes added TG-58 and Varian QA acceptance criteria for analysis. Couch placement analysis is not supported.

Standard Imaging QC-3 Phantom

 Measures contrast-to-noise, noise, uniformity, and resolution. Couch placement analysis is supported.

DR/CR kV Module
IBA Primus L® Phantom
 Measures the contrast-to-noise ratio for each low and high contrast object, geometric distortion, uniformity, and noise. Reports MTF for the resolution pattern. Couch placement analysis is supported.
PTW NORMI®4 Phantom
(20x20 cm and 30x30 cm)		 Measures the contrast-to-noise ratio for each low and high contrast object, geometric distortion, uniformity, and noise. Reports MTF for the resolution pattern. Couch placement analysis is supported.
Leeds TOR-18 Phantom
 Measures the contrast ratio for each low and high contrast object, resolution. Couch placement analysis is supported.
Standard Imaging QCkV-1 Phantom
 Measures contrast to noise, noise, uniformity, and resolution. Couch placement analysis is supported.

kV/MV Module
Standard Imaging ISOCube Phantom Measures kV/MV image coincidence, radiation/light field alignment for kV and MV, CBCT coincidence, and 6 degree-of-freedom couch test.

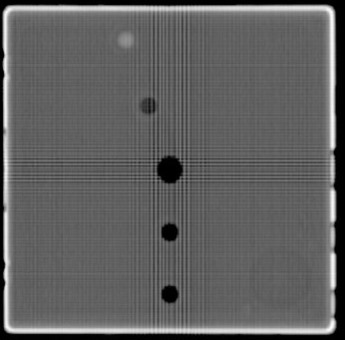

Penta-Guide Phantom
 Measures kV/MV/CBCT image coincidence.

Base Modules
DICOM image viewer and DICOM tag viewer View DICOM images and DICOM tags
Several Methods to locate and import your images DICOM directory browser, open directory browser, DICOM file filter for organizing your images
RIT Cerberus Feature Monitors folders and processes incoming files without you lifting a finger or even being present. Up to 4 DICOM tags may be used to sort.
RunQueueC Feature Batch processing of images, including preference and tolerance profile customization.
RITtrend Feature All measurements can be tracked and plotted over time in the statistical trend database. Any number of databases can be used. All Statistical Process Control parameters measured and plotted.
Monitor Image Quality SMPTE pattern and TG18 images with custom templates (print, PDF, Excel)
Manual Measurements Distance, angle, profile, histograms, round and square ROI. ASCII output of profiles.
Output formats Print, PDF, Excel (with custom templates)
Image Transfer Built-in image FTP function

Catphan® is a registered trademark of The Phantom Laboratory.
NORMI® is a registered trademark of PTW.
Primus® is a registered trademark of IBA.
iView™ is a trademark of Elekta, AB.
