What's New in V7.0
THE RIT FAMILY OF PRODUCTS: Version 7.0
RIT's new software update, the RIT Family of Products - Version 7.0 was released in April of 2025. Customers in-support with our Product Maintenance Program (PMP) are able to easily download the update for free online. This update is available for all software product packages, including: RIT Complete, RIT Classic, RITG135, RITG142, RITG148+, RIT Film, Radia Therapy, and Radia Diagnostic. If you have not already downloaded Version 7.0, we encourage download this update as soon as possible in order to benefit from our latest innovations, enhanced capabilities, and most up-to-date cybersecurity features.
Machine & MLC QA

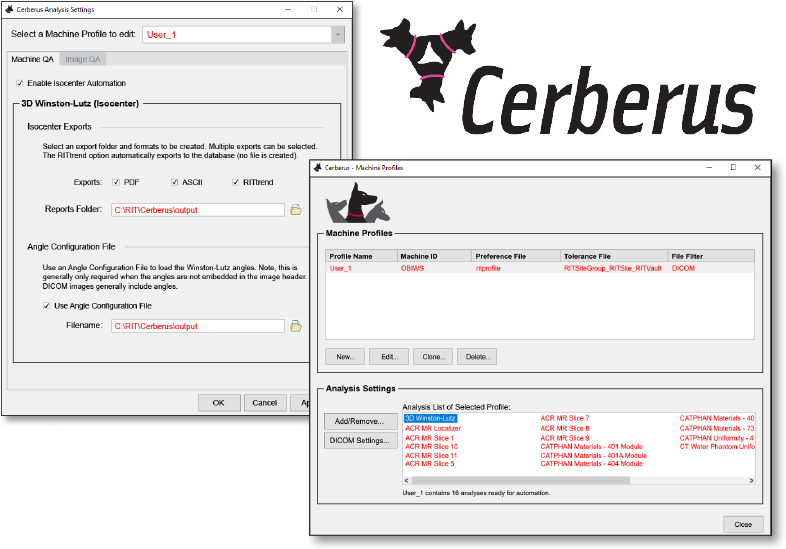

Isocenter Optimization: Hands-Free Analysis with Cerberus
We have combined RIT's convenient hands-free feature with our most popular routine. Cerberus is now available to optimize your efficiency when performing EPID-based 3D Winston-Lutz isocenter analysis. Additionally, Cerberus can set up multiple profiles unique to different machines with specific preferences and tolerances. After a quick and easy setup, Cerberus actively monitors designated folders on your device. As images are dropped into any one of the watched folders, Cerberus automatically identifies, analyzes, and exports the results in RIT-supported formats of your choice, streamlining your workflow. The Cerberus system constantly operates in the background of your machine, without even having to open RIT software.

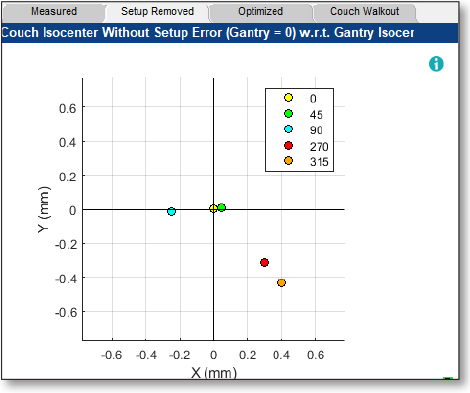

Isocenter Optimization: Couch Isocenter without Setup Error Measurement
In the analysis results display tabs, a new set of measurements will display the Couch Isocenter Without Setup Error. This measurement will plot the deviation with ball setup error removed, providing additional insights in your analysis.
Isocenter Optimiztion: Enhanced Elekta Bipolar Coordinate System
In collaboration with Elekta, RIT software will now display the results in the GT direction of the Elekta Bipolar coordinate system as sign-flipped. This will match Elekta Field Service documentation, making for easier interpretation.

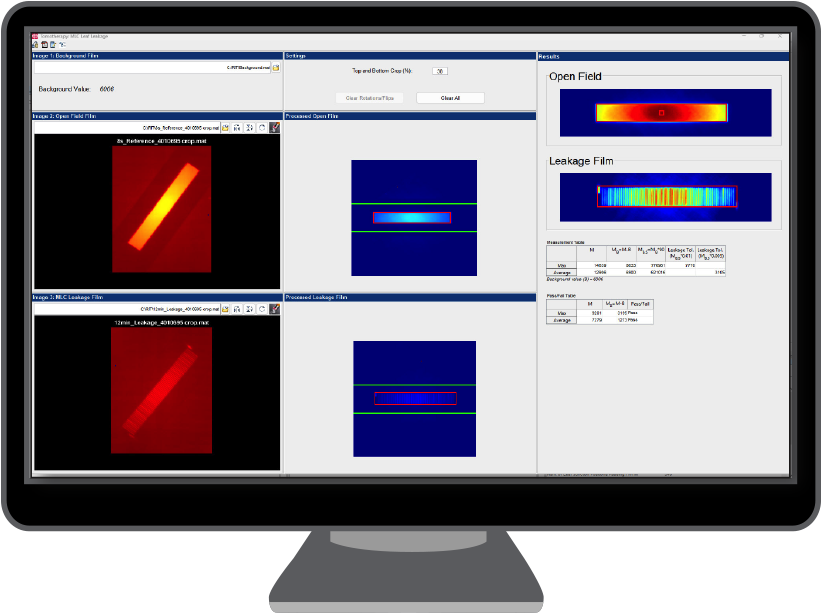

TomoTherapy® MLC Leakage Analysis
The RIT Complete software package now has a new feature for TomoTherapy MLC Leakage analysis. The MLC Leakage analysis routine will fully automate the leakage calculation specified by Accuray, which can significantly increase the uniformity of your measurements. The results can be easily exported as a PDF report, ASCII report, or to the RITtrend™ database for statistical process control.
TomoTherapy® Overhead Laser Top Crop Percentage
Cropping lines have been added to the image in the Overhead Laser (Laser Localization) routine. With this addition, users can visually set the correct 'Top Crop Percentage' in the analysis.
Updates to TomoTherapy® Registration
In the TomoTherapy Registration routine, selecting a working directory for one file (e.g., the Plan) sets that path for all files in the analysis. By allowing users to keep all related files in a single directory, this feature simplifies file management by eliminating the need for repetitive path entry, thus saving time and minimizing errors. RIT has also added support for Accuray Precision® 3.X Treatment Planning System DICOM files.
TomoTherapy® and Precision® are registered trademarks of Accuray, Inc.
Imaging QA/QC

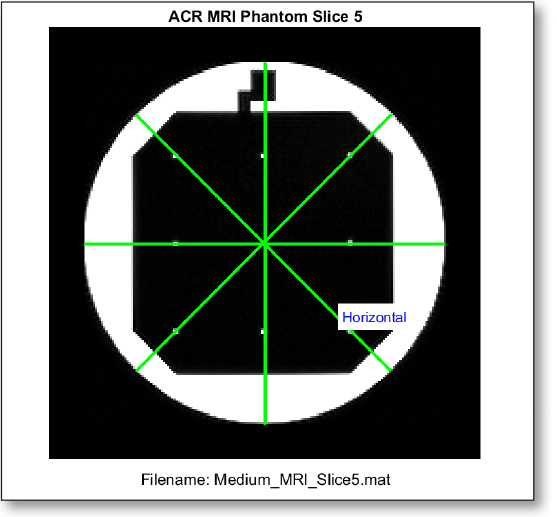

ACR MRI Medium Analysis
Analysis support for the ACR Medium MR phantom has been added to the ACR MRI Module, in addition to the ACR Large MR phantom and Small MR phantom analyses. The software will automatically identify the phantom size as Large or Medium with the appropriate tolerances, and allow for the tolerances to be customized.

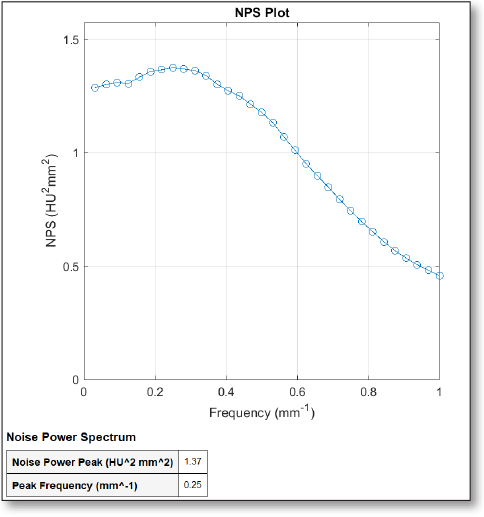

Noise Power Spectrum for TomoTherapy Cheese Phantom
A calculation of the Noise Power Spectrum (NPS) has been added to the Cheese Phantom uniformity analysis, in compliance with ANSM* 2023.
*French National Agency for Medicines and Health Products Safety
Noise Power Spectrum for Uniformity
Noise Power Spectrum (NPS) measurements have been added to most uniformity measurements in compliance with ANSM* 2023.
*French National Agency for Medicines and Health Products Safety
Catphan® Materials Baseline Slice Width
In the Catphan® Materials measurements for the Catphan OBI Module, the baseline for the slice width is now automatically taken from the DICOM slice width tag, and the user-specified tolerances are applied. This significant time-saving improvement will optimize your workflow.
Catphan® is a registered trademark of the Phantom Laboratory.

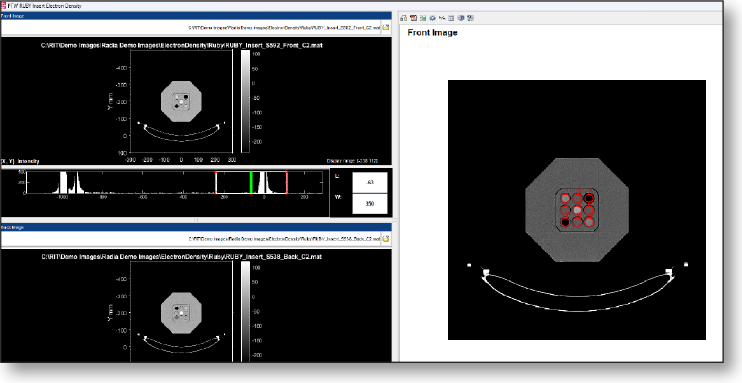

PTW Electron Density Phantom Analyses
The Electron Density module now supports analyses of the PTW Electron Density and PTW RUBY Insert Electron Density phantoms. Image analysis results can be exported as a PDF, Excel file or to the RITtrend™ database with a single click.
RITtrend™ is a trademark of Radiological Imaging Technology, Inc.
Image Resolution for TOR-18
The resolution measurement in the TOR-18 analysis has been improved to handle newer high-resolution imagers.
Added Uniformity Measurements
Uniformity measurements have been added to the Standard Imaging QCkv1 and QC3 phantom analysis routines.
Patient QA
Updates to TomoTherapy® Registration
In the TomoTherapy Registration routine, selecting a working directory for one file (e.g., the Plan) sets that path for all files in the analysis. By allowing users to keep all related files in a single directory, this feature simplifies file management by eliminating the need for repetitive path entry, thus saving time and minimizing errors. RIT has also added support for Accuray Precision® 3.X Treatment Planning System DICOM files.
TomoTherapy® and Precision® are registered trademarks of Accuray, Inc.
Expanded Measurement Values
Users can adjust the Low Dose Threshold value by increasing it up to 90% of the maximum image value. This is useful for isolating changes in the highest dose regions.
Updated Defaults for Gamma Analysis
The default values for Gamma Analysis (Distance-to-Agreement and Difference) have been updated to match TG-218 recommendations at 3% and 2 mm. While these default values have changed, they continue to be completely adjustable to users so that you can customize them to fit your needs.
Patient QA Registration Window & Leveling
The Window and Leveling adjustment in Patient QA Registration has been improved and standardized.
Other
Enhanced License Manager
RIT's improved License Manager allows for better license tracking and usage. After a license return, the License Manager will now track the number of server-based licenses available for our Floating License and Local License Server models. License availability is confirmed upon software closure, enabling users to easily view and manage their license count. When all licenses are in use, the License Manager directs any additional users to a list of system names from the devices currently holding them.
License Auto-Return Timeout Preference
RIT software now provides users of server-based license models with the new option to implement a timeout mechanism preference, which will auto-return licenses after a predetermined time limit. This is a helpful addition for users that have a limited number of licenses in relation to the number of devices used, and who occasionally forget to return their server licenses.
Increased ROI In Perpendicular Calibration
In RIT's Perpendicular Calibration routine, the maximum size of the analysis ROI has been increased to accommodate large film areas. This provides better averaging of scanner values in cases where only one dose is used per film.
Sizes up to 18 x 23 cm are now supported.

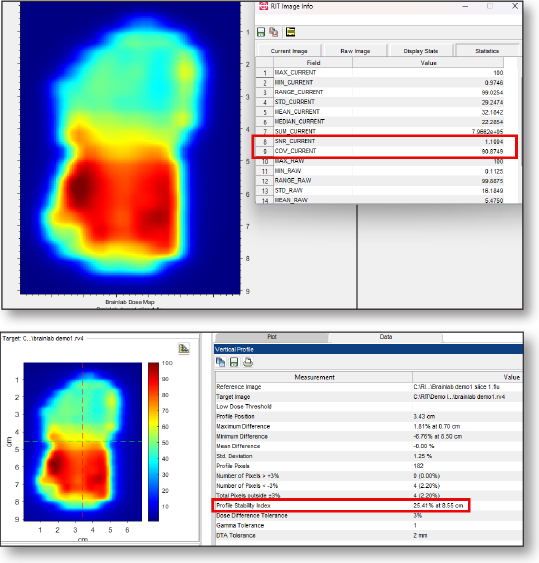

Image Information Analysis Enhancements
To better comply with the French National Agency for Medicines and Health Products Safety, RIT's Image Information Analysis has been enhanced with additional measurements for ANSM* 2023: the Coefficient of Variation and Signal-to-Noise ratio. The ANSM 2023 dose profile stability index measurement has also been added to all 2D dose plots.
*French National Agency for Medicines and Health Products Safety.
Automatic PDF File Name Generation
When exporting analysis results to a PDF report, for most routines, the RIT software will now automatically suggest a file name, saving you time in your workflow and improving your efficiency. The automated PDF file names will contain the RIT routine name, a timestamp, and a pass/fail indication (when applicable). Users can always replace or modify the automatically generated file name.
Accelerated Technical Support Workflow
RIT has made a number of improvements and additions to the information included in our software's Output Log File for streamlining the workflow of our Technical Support department. This will aid in faster technical problem diagnoses to obtain possible solutions for our customers in a more efficient manner.
Enhanced Cybersecurity
With every new update, RIT continues to enhance our software’s security features, reinforcing our commitment to maintaining best practices in cybersecurity. Since cybersecurity is changing all the time, Version 7.0 has a significant number of cybersecurity updates for each of the RIT products. This helps safeguard your data and give you peace of mind.
